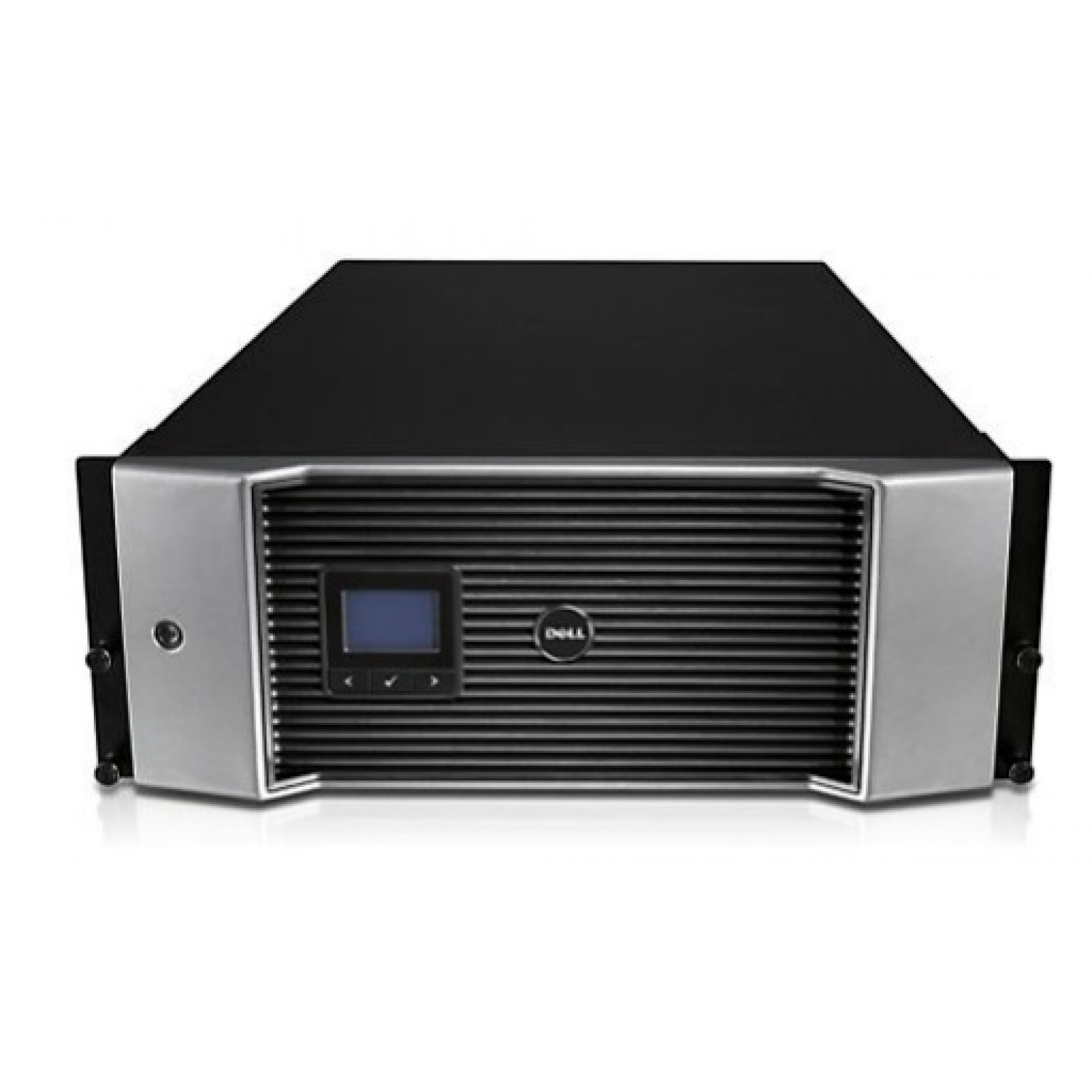

UPS Dell 5600R OL HV 5600W 230V RackMount 4U

UPS Dell 5600R OL HV 5600W 230V RackMount 4U

Poza este informativa!
UPS-ul nu are masca de plastic frontala!

UPS-ul contine 18 acumulatori !

• Model: Dell 5600R OL HV, 5600W
• Dimensions(WxHxD): 438 x 171.5 x 801.4 mm
• Rack Unit Size: 4U
• Weight: 72.0 kg (158.7 lb)
• Nominal Voltage: 220-240V
• Nominal Volatage Range: 160-286V auto sensing
• Nominal Frequency: 50/60 Hz auto-sensing
• Efficiency: 96%
• Noise Filtering: Full Time EMI/RFI Filtering
• Connections: Hardwired
• Power Levels: 5600W
• Operating Temperature: Up to 1,500 meters: 0°C to 40°C (32°F to 104°F); UL tested 25°C (77°F)
•                                        Above 1,500 meters: 0°C to 35°C (32°F to 95°F)
• Audible Noise: Less than 55 dBA on line/bypass mode (less than 75% load), room temperature
• Fan Speed: Low speed: when the load is <80%
•                    High speed when the load is >80% or the UPS is in Battery mode
• Configuration: 5600W: (18) 216V, 7.2 Ah internal batteries; EBM (18) 216V, 9.0 Ah
• Battery Type: CSB GP1272 7.2 Ah, YUASA NP7-12 7Ah, YUASA NPW 45-12 9.0 Ah
• Voltage: 5600W: 216 Vdc internal, 216 Vdc/30A EBM
• Fuses: UPS: (2) 30A fuses
•            EBM: (2) 30A fuses
• Type: Sealed, maintenance‐free, valve‐regulated, lead‐acid
• Charging: Approximately 4 hours to 90% usable capacity at nominal line and no supplementary power supply load
• Monitoring: Advanced monitoring for earlier failure detection and warning
• Battery Runtimes: 5600W internal batteries: 5.5 minutes at full load/17 minutes at half load
•                               5600W with one EBM attached: 19 minutes at full load/45 minutes at half load
