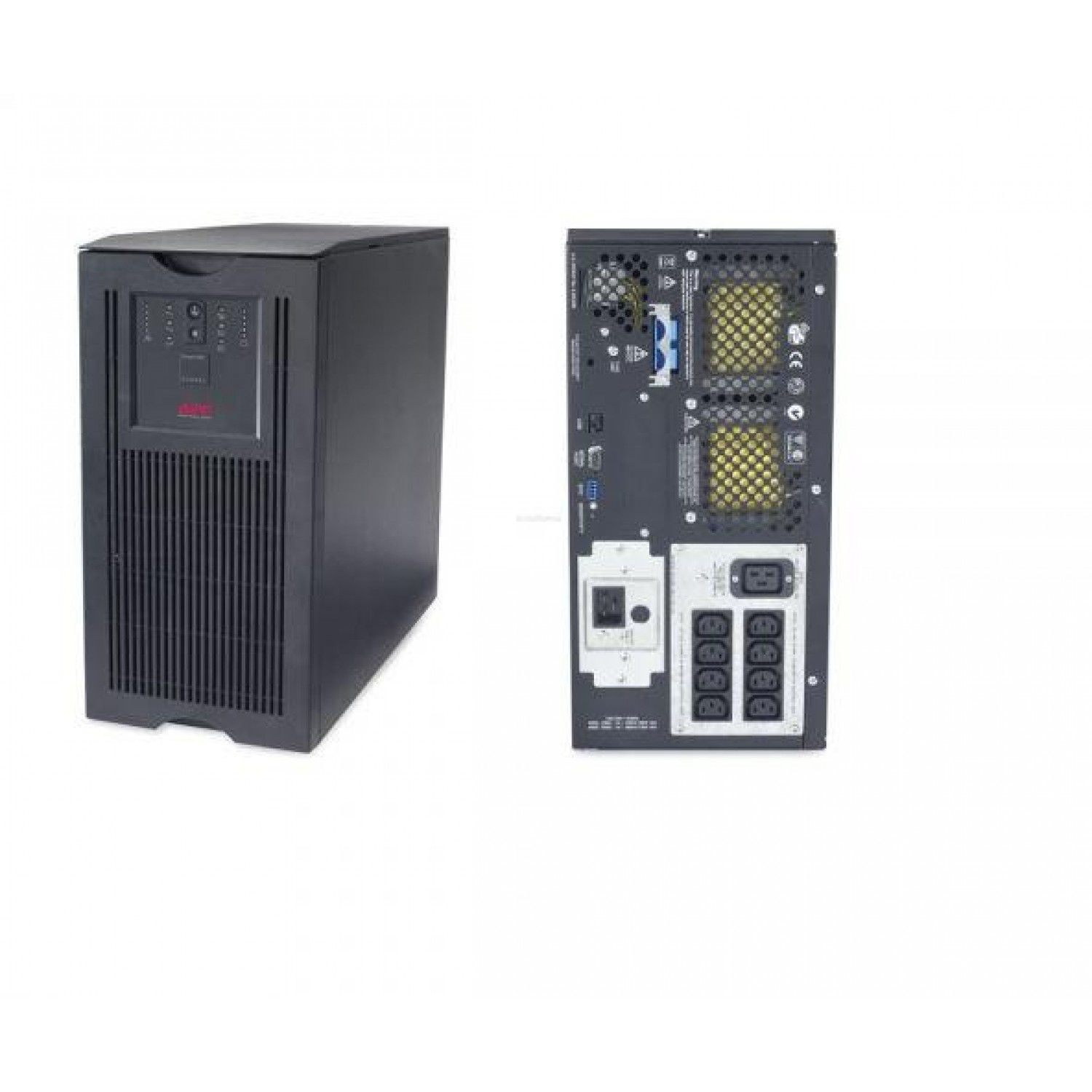

UPS APC Smart SUA3000XLI 3000VA 230V Tower/Rack Convertible
Nu are masca frontala de plastic!
Poza este informativa!
Output
Output Power Capacity
2700 Watts / 3000 VA
Max Configurable Power
2700 Watts / 3000 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
95.00%
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Crest Factor
up to 5 : 1
Waveform Type
Sine wave
Output Connections
(8) IEC 320 C13
(1) IEC 320 C19
(3) IEC Jumpers
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
IEC-320 C20
Schuko CEE 7 / EU1-16P
British BS1363A
Input voltage range for main operations
160 - 286V
Input voltage adjustable range for mains operation
151 - 302V
Typical recharge time
3 hour(s)
Replacement Battery
RBC55
RBC™ Quantity
1
Typical Backup Time
at Half Load
17.0 minutes (1350 Watts)
Typical Backup Time
at Full Load
5.0 minutes (2700 Watts)
Runtime Chart
Smart-UPS XL
Extended Run Options
APC Smart-UPS XL 3000VA 230V Tower/Rack Convertible
Communications & Management
Interface Port(s)
DB-9 RS-232,SmartSlot
Available SmartSlot™ Interface Quantity
1
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
