| Authentication Method: |
RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Built-in Devices: |
Status LCD |
| Compliant Standards: |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Device Type: |

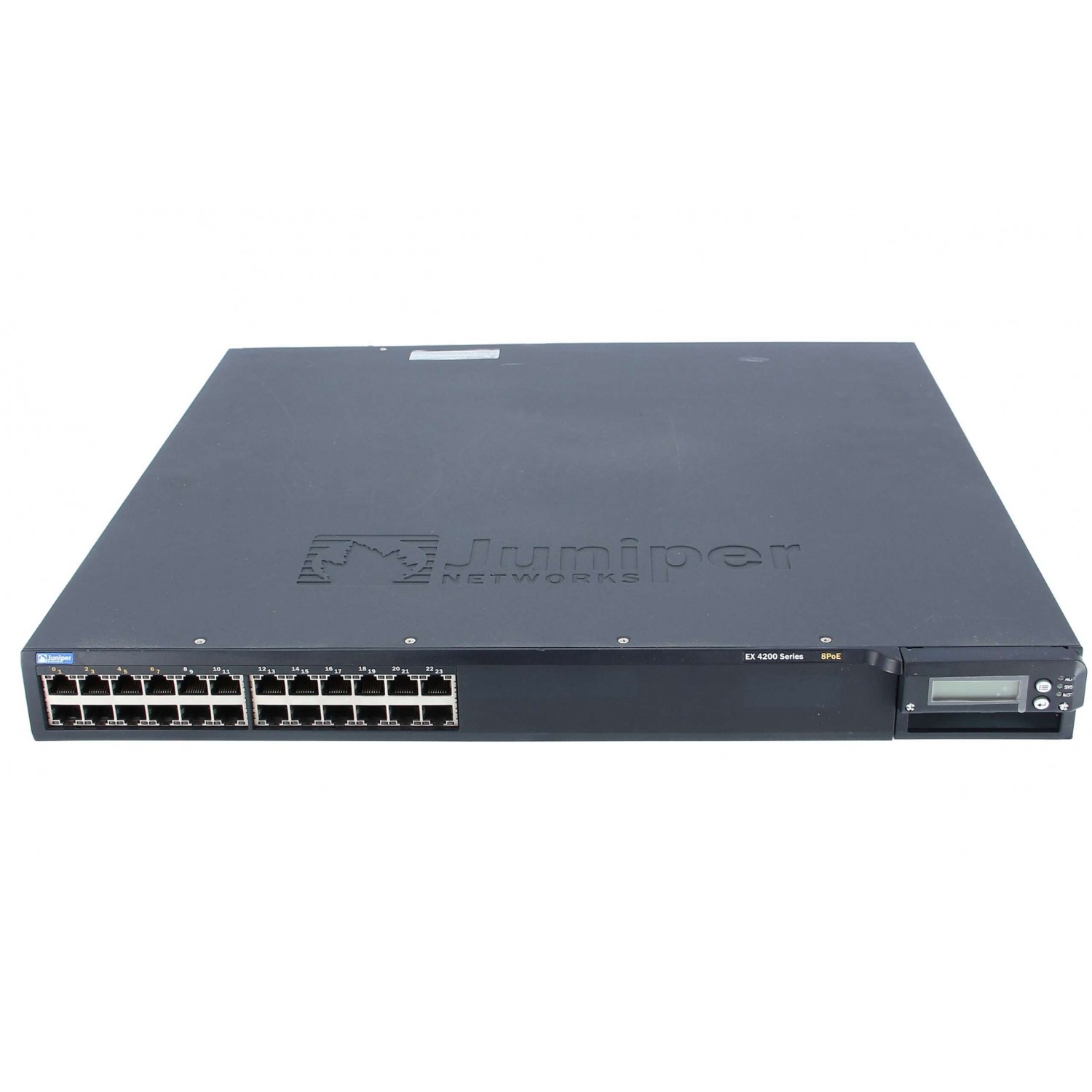

Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type: |
Desktop 1U |
| Encryption Algorithm: |
MD5, TLS, PEAP, TTLS |
| Features: |
Hot swap module replacement, routing, Layer 3 switching, Layer 2 switching, DHCP support, power over Ethernet (PoE), ARP support, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, store and forward, IPv6 support, High Availability, 256-bit encryption, DHCP snooping, Quality of Service (QoS), RADIUS support, Jumbo Frames support, DHCP server, DHCP proxy, Dynamic ARP Inspection (DAI), temperature sensor, Redundant trunk group (RTG), Time Domain Reflectometry (TDR), Virtual Chassis technology, Non-Stop Bridging (NSB), Non-Stop Routing (NSR), Graceful Route Engine Switchover (GRES) |
| Flash Memory: |
1 GB Flash |
| MAC Address Table Size: |
24K entries |
| Max Units In A Stack: |
10 |
| Ports: |
24 x 10/100/1000 |
| Power Over Ethernet (PoE): |
PoE |
| Processor: |
PowerPC: 1 GHz |
| RAM: |
1 GB |
| Remote Management Protocol: |
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, RMON, SNMP 3, HTTP, HTTPS, SSH-2 |
| Routing Protocol: |
OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, policy-based routing (PBR) |
| Status Indicators: |
LCD display |
| Subtype: |
Gigabit Ethernet |
