Switch-uri

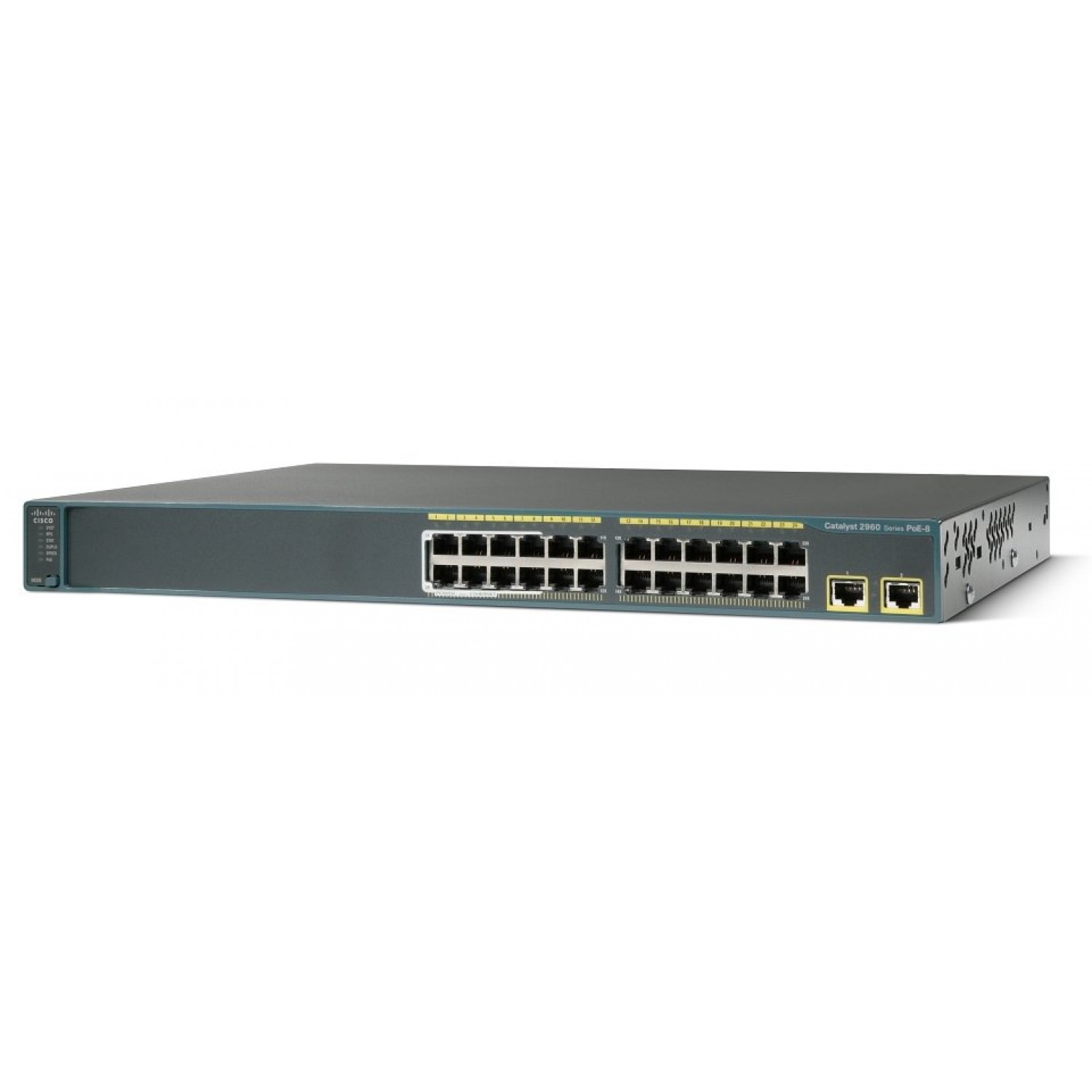

Switch CISCO NOU in cutie 2960 SERIES WS-C2960-24TT-L
Switch-uri
Switch CISCO 2960 SERIES WS-C2960-24TT-L
Key Features
Form Factor Rack-Mountable
Ports Qty 24
Data Transfer Rate 100 Mbps
Data Link Protocol Ethernet, Fast Ethernet
Compatibility PC
Features
Other Features Layer 2 switching, auto-sensing per device, auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, E-mail alert, DHCP snooping, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS)
Status Indicators Link activity, port transmission speed, port duplex mode, power, link OK, system
Networking
Networking Type Switch
Connectivity Technology Wired
Switching Protocol Ethernet
Remote Management Protocol FTP, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, TFTP, Telnet
Routing Protocol IGMP, IGMPv2, IGMPv3
MAC Address Table Size 8K entries
Connectors
Interfaces 2 x network host - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female, 24 x network node - Ethernet 10Base-T/100Base-TX - RJ-45 female
Power
Power Consumption Operational 28 Watt
Power Source AC 120/230 V ( 50/60 Hz )
Power supply - internal
