UPS Eaton 5P1150IR 1150VA 770 W Input: C14 Outputs: (6) C13 Rack 1U
Acumulatori second hand OK, in stare buna.
Fara urechi pentru rack.

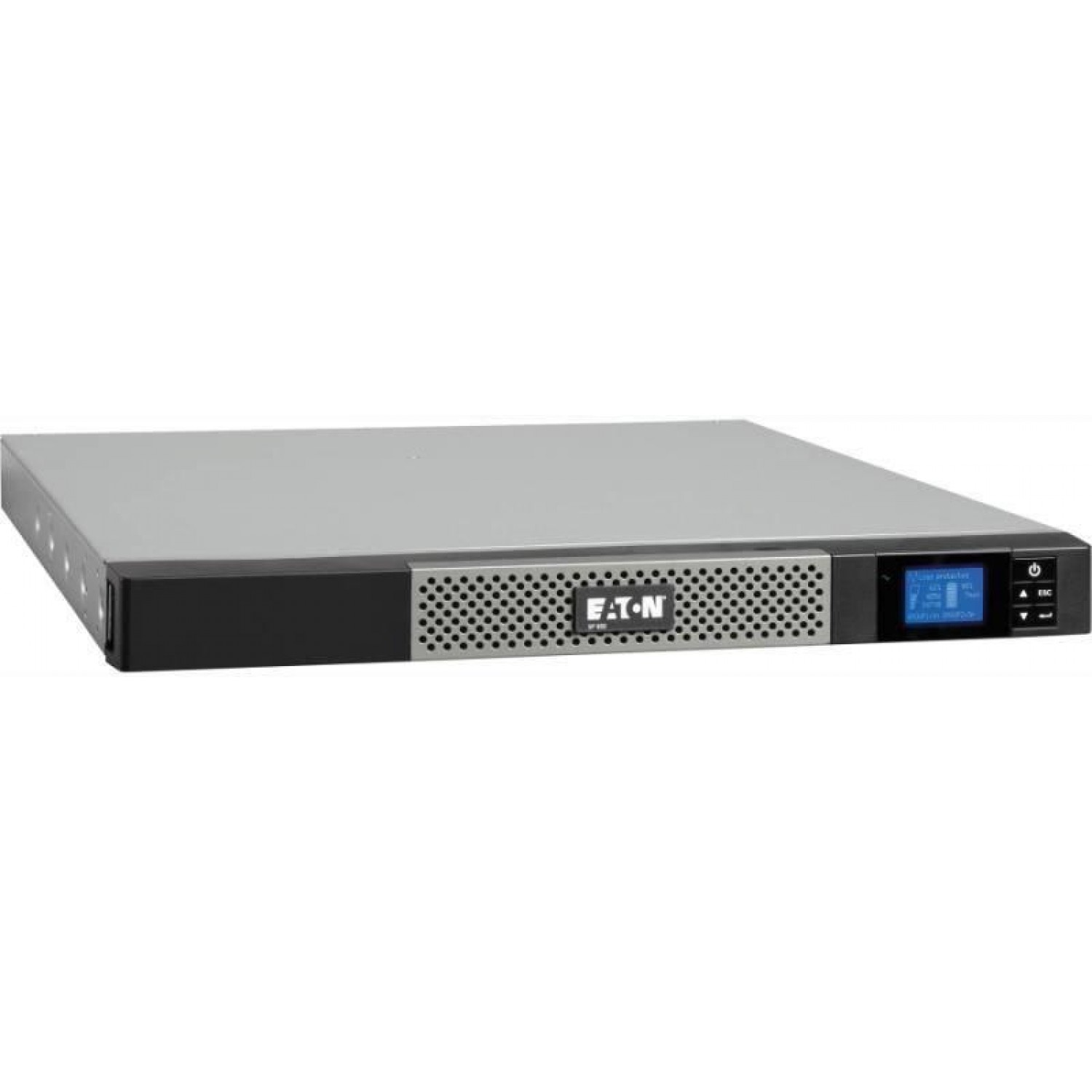

Poza este informativa !

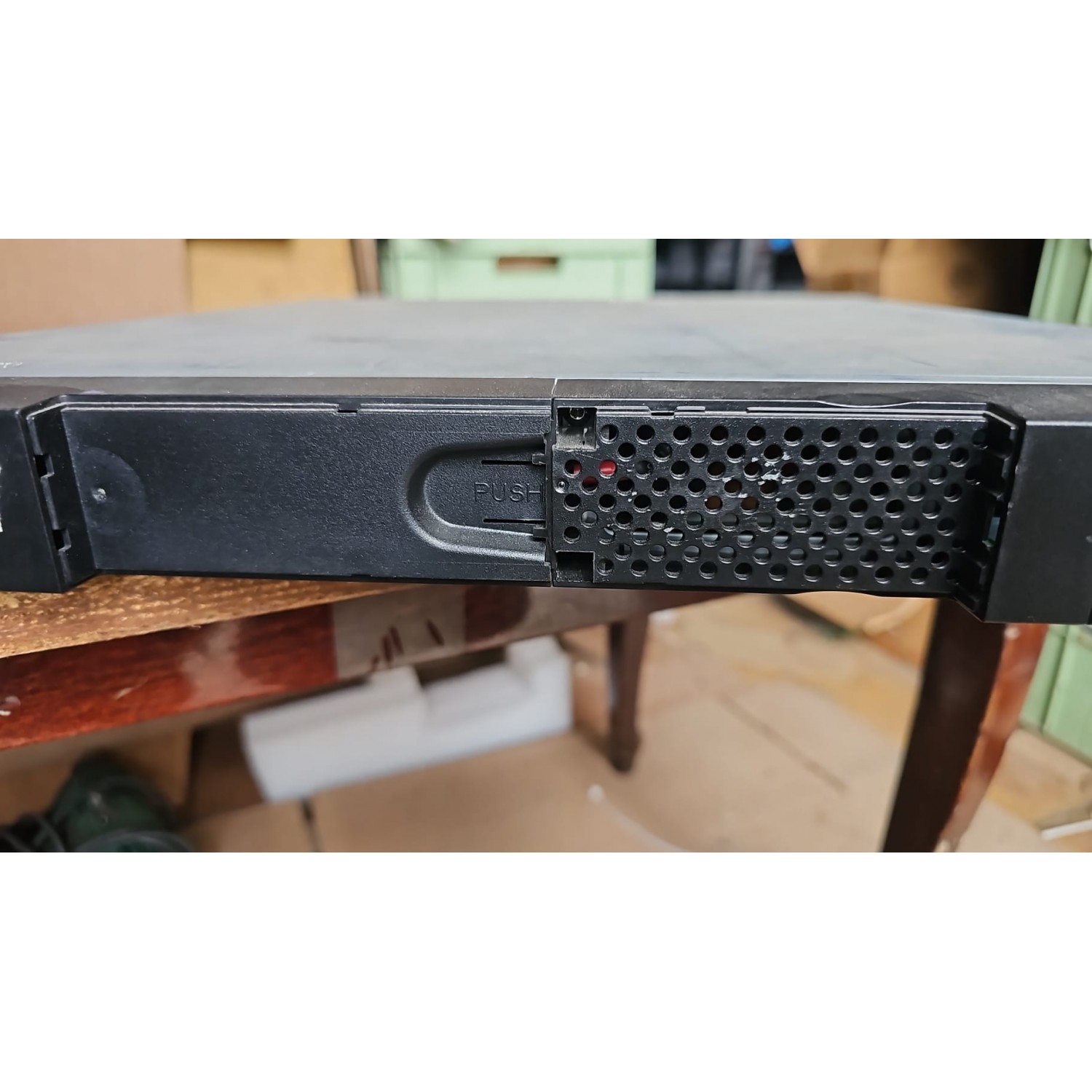

Lipseste o masca decorativa din fata.(vezi poza)
SECONDARY FREQUENCY - MAX60 Hz
OUTPUT WAVEFORMSine wave
WATTAGE770 W
OUTPUT POWER FACTOR0.7
FORM FACTOR Rack
INPUT CONNECTION C14
INPUT VOLTAGE - MIN 150 V
OUTPUT VOLTAGE - MAX 240 V
SECONDARY FREQUENCY - MIN 50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT User replaceable
BATTERY TYPE Lead-acid maintenance-free (replaceable)
EFFICIENCY 97
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
High-density protection for networks: 1U only
Energy efficient, reduce energy and cooling costs
Delivers clean sinewave output
1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Fully integrates with Eaton Intelligent Power Manager software
1 USB port + 1 serial port
Advanced Battery Management (ABM) technology to increase battery lifetime
Next-generation graphical LCD display
Hot swappable batteries
Remote reboot and runtime optimization thanks to 2 manageable outlet groups
CONSTRUCTION TYPE 482.6 mm (19 inch) device
OUTPUT VOLTAGE - MIN 200 V
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
TOPOLOGY Line-interactive
BTU RATING Online: 158
RUNTIME AT HALF LOAD 11.5 min
INPUT NOMINAL VOLTAGE 230V default (200/208/220/230/240V)
INPUT FREQUENCY RANGE 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
INPUT VOLTAGE - MAX 294 V
VOLTAGE TYPE AC
PHASE (OUTPUT) 1
BATTERY MANAGEMENT
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
AUTO SHUTDOWN FUNCTION Yes
NUMBER OF OUTPUTS C13 6
VA RATING 1150 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE (6) C13
PHASE (INPUT) 1
NOISE LEVEL <40 dB at 1 meter
FEED TYPE1
RUNTIME GRAPH View runtime graph
USER INTERFACE Multilingual graphical LCD display
BATTERY QUANTITY 2
RACK SIZE 1U
VOLTAGE 230V
TEMPERATURE RANGE 0-90% non-condensing
ETHERNET INTERFACE No
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)
RELATIVE HUMIDITY 0-90% non-condensing
RACK MOUNTING KIT Yes
OUTPUT FREQUENCY 50/60 Hz
RUNTIME AT FULL LOAD 4 min
TYPE OF INTERFACE Other
PRIMARY FREQUENCY - MIN 47 Hz
BATTERY RATING 12 V / 9 Ah
TYPE UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
160-294 V (adjustable to 150 V-294 V)
NOMINAL FREQUENCY
50-60 Hz
PRIMARY FREQUENCY - MAX
70 Hz
ALTITUDE
2000 m
