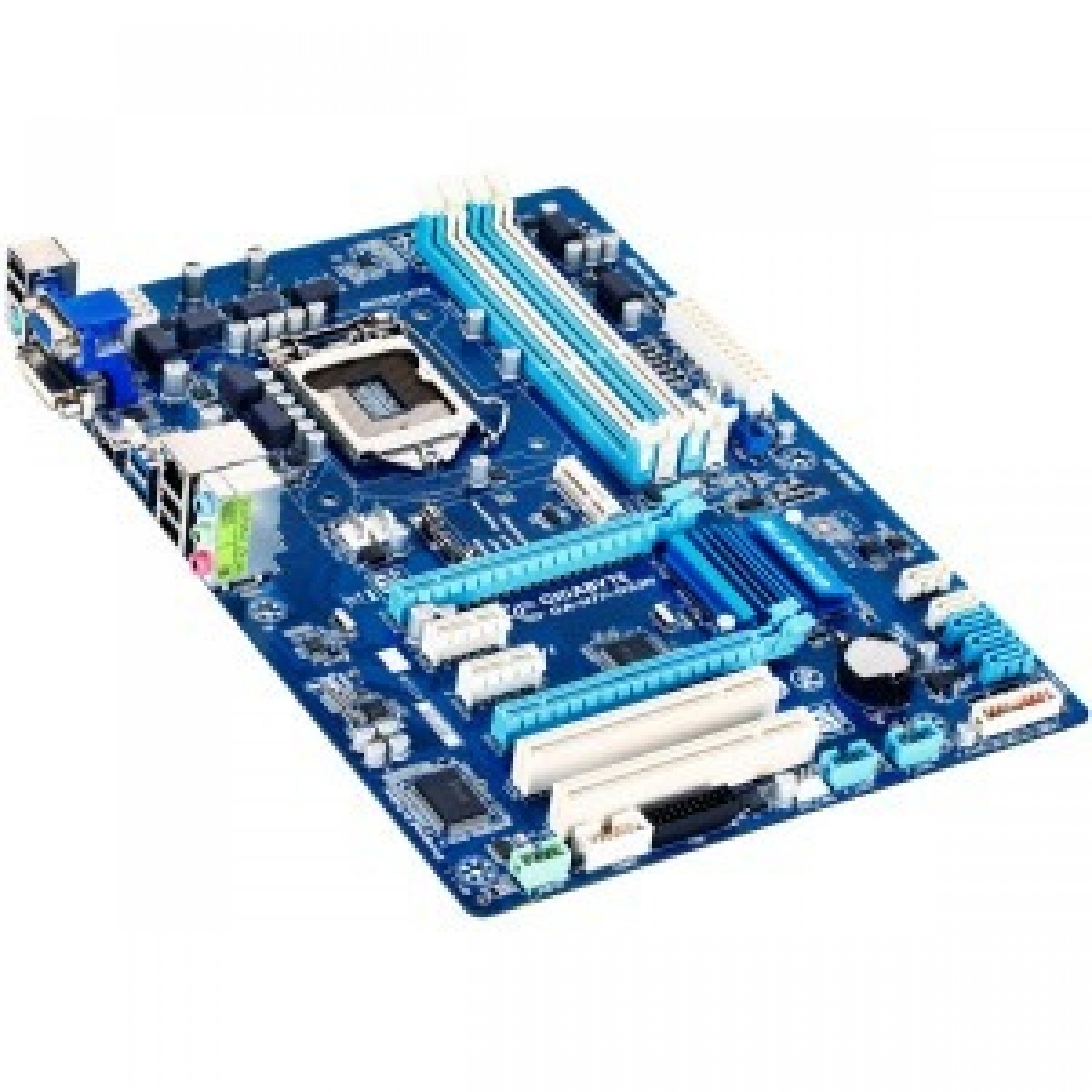

Kit Placa de baza PC GIGABYTE GA-H77-DS3H + INTEL QUAD I5-3570 3.4Ghz si 8GB DDR3 LGA1155

Kit Placa de baza PC GIGABYTE GA-H77-DS3H + INTEL QUAD I5-3570 3.4Ghz si 8GB DDR3 LGA1155

• CPU
  (Some Intel Core™ processors require a graphic card, please refer "CPU support List" for more information.)
  1. Support for Intel Core™ i7 processors/Intel Core™ i5 processors/ Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1155 package
  2. L3 cache varies with CPU
• Chipset
  1. Intel H77 Express Chipset
• Memorie
  (Please refer "Memory Support List" for more information.)
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
     * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  2. Dual channel memory architecture
  3. Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
     * To support DDR3 1600 MHz, you must install an Intel 22nm CPU.
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
     * To support XMP memory, you must install an Intel 22nm CPU.
• Grafică onboard
  Integrated Graphics Processor:
  1. 1 x D-Sub port
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
     * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
• Audio
  1. Realtek ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
• LAN
  1. Atheros GbE LAN chip (10/100/1000 Mbit)
• Sloturi de expansiune
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
     * The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 2 x PCI Express x1 slots
     (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
  4. 2 x PCI slots
• Tehnologie multi-grafică
  1. Support for AMD CrossFireX™ technology
• Interfață de stocare
  Chipset:
  1. 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
  2. 3 x SATA 3Gb/s connectors (SATA2 2/3/4) supporting up to 3 SATA 3Gb/s devices
  3. 1 x mSATA connector
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
• USB
  Chipset:
  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
     * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
  2. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Conectori interni I/O
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 2 x SATA 6Gb/s connectors
  4. 3 x SATA 3Gb/s connectors
  5. 1 x mSATA connector
  6. 1 x CPU fan header
  7. 3 x system fan headers
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x S/PDIF Out header
  11. 2 x USB 2.0/1.1 headers
  12. 1 x USB 3.0/2.0 header
  13. 1 x Clear CMOS jumper
  14. 1 x serial port header
  15. 1 x Trusted Platform Module (TPM) header
• Conectori panou spate
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 4 x USB 2.0/1.1 ports
  6. 2 x USB 3.0/2.0 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In/Line Out/Microphone)
